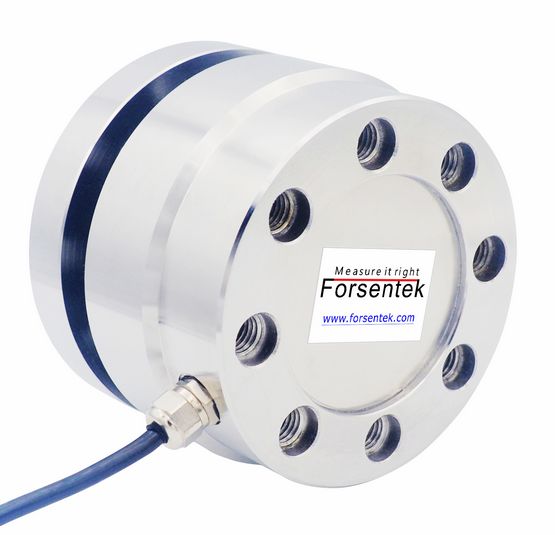

Flange type tensile compressive force transducer

Model:                       FFQ

Capacity:                   0-100kN

Type:                         Flanged load cell

Load direction:          Tension/compression

Rated output:             1.5mV/V

Non-repeatability:     0.1% of R.O.

Excitation:                 3~15V

Mounting:                 Flange to flange

Features:

Tensile compressive force transducer FFQ is produced based on strain gauges intended for both traction and compression force measurement with 0-500N / 0-1kN / 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-100kN ten rated ranges to choose from. Stainless steel construction, sturdy design, flanged ends on both sides, you may find column type flanged load cell FFQ suitable for applications such as bearing press-fitting sector, pneumatic forming crimping press, riveting machine, cylinder thrust measurement, forming precess force control and so on. Flange type force sensor FFQ can also be modified or customized as per client’s request.

Dimensions:
