How to choose a load cell

Step 1---Define your requirements

Measuring range: This will decide the load cell capacity,capacity to choose.

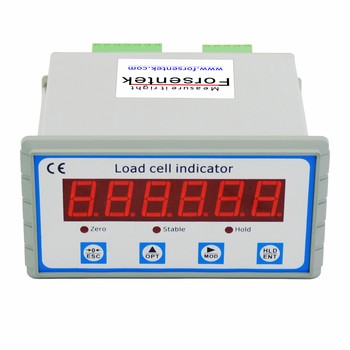

Output signal: Typical output of a load sensor is 2.0mV/V,0-5V or 4-20mA is also achievable through internal or external amplifier.

Load direction: Tension?Compression?Tension and compression?

Working temperature: Different strain gauges and accessaries will be used for different temp. range.

Material: Aluminum,alloy steel or stainless steel?

Mounting: Female/Male thread,In-line,Side Mount,Flange Mount,Thru-hole,or other structure?

Accuracy: Different application has different error tolerance and some load cells have relative low accuracy.

Environmental protection: Anti-electromagnetic interference,anti-explosion,dustproof,waterproof ?

Sampling frequency: Different force sensor has different natural frequency.

Other requirements like electrical connection,cable length,installation space,etc.

Step 2---Get to know about load cell

Load cell(Force sensor,force transducer): A measuring device which converts mechanical force into electrical signal which is proportional to the applied force.

Rated capacity: The maximum axial load that the transducer is designed to measure within its specifications.Active redundancy should be considered when choosing the capacity.

Rated output(Sensitivity): The signal produced by force transducer when rated capacity is applied, expressed in terms of mV/V.

Resolution: The smallest change in mechanical input which produces a detectable change in the output signal.

Zero balance: The output signal of the force sensor with no-load applied.

Non-repeatability: The maximum difference between force sensor output readings for repeated loadings under identical loading and environment conditions.

Non-linearity: The maximum deviation of the calibration curve from a straight line drawn between the no-load and rated capacity outputs,measured on increasing load only.

Hysteresis: The maximum difference between the load cell output readings for the same applied load;one reading obtained by increasing the load from zero and the other by decreasing the load from rated output.

Creep: The change in load sensor output occurring with time,while under load,and with all environmental conditions and other variables remaining constant,defined by a certain time like 30min.

Safe overload: The maximum load that can be applied without producing a permanent shift in load cell performance.Specified as a percentage of the capacity (i.e.150% of F.S.).

Ultimate overload: The maximum load that can be applied without physical destruction to force sensor. Specified as a percentage of the capacity(i.e.200% of F.S.)

Compensated temperature: The range of temperature over which the load cell is compensated to maintain rated output and zero balance within specified limits.

Operating temperature: The limits of temperature within which the force transducer will operate without permanent adverse change to any of its performance characteristics.

Temperature shift on zero: The change in zero balance due to a change in force sensor working temperature.

Temperature effect on output: The change in output due to a change in load cell working temperature.

Natural frequency: The frequency of free oscillation under no-load conditions.

Step 3---Choose suitable load cell according to your application.

With the development of sensor technology, custom design is getting increasingly common. Customizable variables include:

Capacity

Rated output(mV,0-5V,0-10V,0-20mA,4-20mA)

Material(Al,alloy steel and stainless steel)

Dimensions

Electrical connection

Ingress protection class

Working temp.

Other parameters are crucial to your application.
