Product > Tension compression load cell

Miniature compression traction force transducer

Model:                        FSKE

Capacity:                    0~2kN

Type:                          Small S beam force sensor

Load direction:           Traction/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Other:                        Push/Pull load cell

Features:

Miniature traction compression force transducer FSKE is made of stainless steel intended for push and pull force measurement. Small size traction force load cell FSKE offers 50N / 100N / 200N / 500N / 1kN / 2kN (5kg / 10kg / 20kg / 50kg / 100kg / 200kg) six rated capacities with maximum 0.1% non-linearity of the full scale to choose from. Full-bridge configuration delivers 2.0mV/V sensitivity, amplified outputs are available on request provided by means of external load cell signal conditioners such as -5-5V, 0-10V, 4-20mA. M8 metric threaded holes located on both sides of the load cell can be used to mount attachments such as load buttons, eye bolts, hooks to meet requirements of different applications in force detecting and auto processing sections.

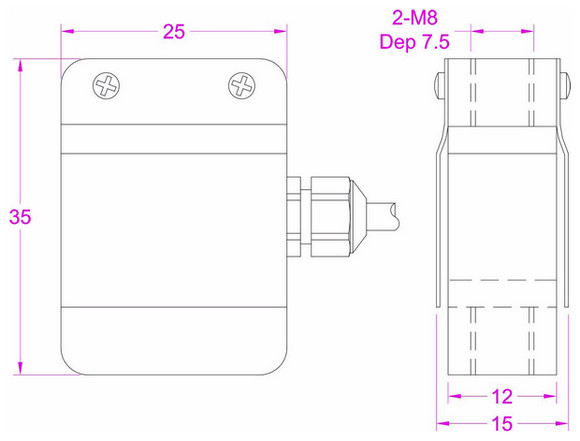

Dimensions:
Searching keywords:
Compression traction load cell,miniature force sensor,pull force transducer
