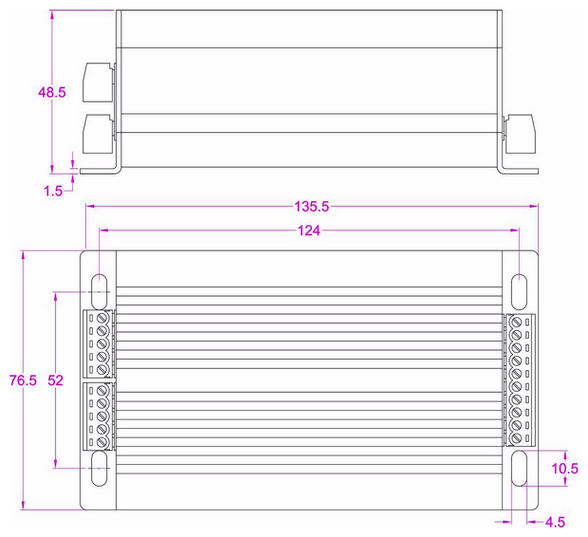

Multi channel load cell amplifier for 3 sensors




3 channel load cell signal amplifier LC3A can work with all our load cells and force sensors with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for up to 3 sensors. Power supply of 3-input signal conditioner LC3A can be 12V DC or 24V DC depending on the ordering code, amplifier will then power the connected sensors with 5V excitation, wiring can be easily done with a screw driver, 2-point calibration through Zero and Gain adjustment for each channel. Multi-channel load cell amplifier LC3A is widely used with our 3-axis force sensors to deliver amplified signal for further signal processing and data acquisition.
