Shaft rotary torque sensor with speed measurement

Model:                        FYTE

Capacity:                    5NM~100NM

Material:                     Stainless steel

Load direction:           Clockwise&CCW

Rated output:              ±5V/4-20mA

Non-repeatability:      0.2% of R.O.

Excitation:                  24V/12V DC

Other:                         Custom-design service

Features:

Non-contact shaft-to-shaft rotary torque sensor FYTE is produced based on contactless rotary transformer technology, there is no friction between rotating shaft and signal collect device which makes it much more durable compared to slip-ring type rotary torque sensors.Model FYTE offers 5NM / 10NM / 20NM / 30NM / 50NM / 100NM six measuring ranges to choose from.Integrated with speed encoder for speed measurement up to 8000RPM,built-in circuit board delivers ±5V,±10V or 4-20mA output for easy data processing.Keyed shafts located on both sides can be easily connected to motor and load through couplings.You may find transducer FYTE applicable for motor test benches, agitator torque control, screw locking torque monitoring, torque measurement of engines, pumps, gearboxes and rotating shafts,etc..

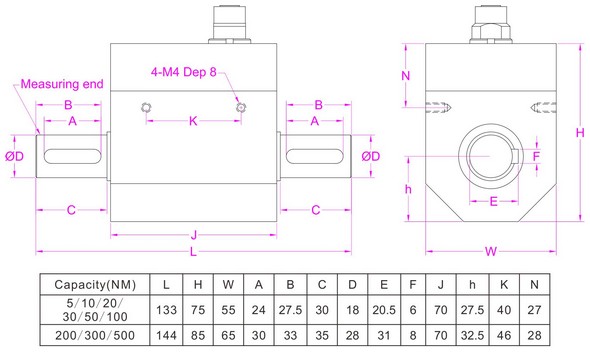

Dimensions:
Searching keywords:
Non-contact rotary torque transducer,shaft torque sensor,contactless torque sensor
