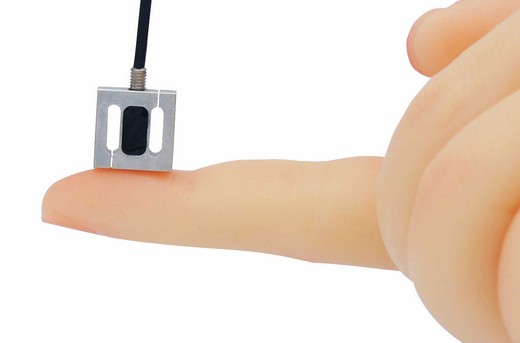

Miniature jr s-beam load cell Micro force sensor

Model:                        FSSQ

Capacity:                    10/20/50/100/200N

Type:                         Miniature force sensor

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Connection:                M2 threaded hole

Feature:                     Micro force transducer



Features：

Miniature s-beam load cell FSSQ utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity,it provides 10N / 20N / 50N / 100N / 200N capacities to choose from.Jr s beam load cell FSSQ features M2 threaded holes on two sides for the mounting of attachments or implements for force measurement in both tension and compression direction,the miniature size enables model FSSQ to be easily integrated into machinery or test equipment such as packaging machinery, assembly machinery and end-of-line test equipment,etc..

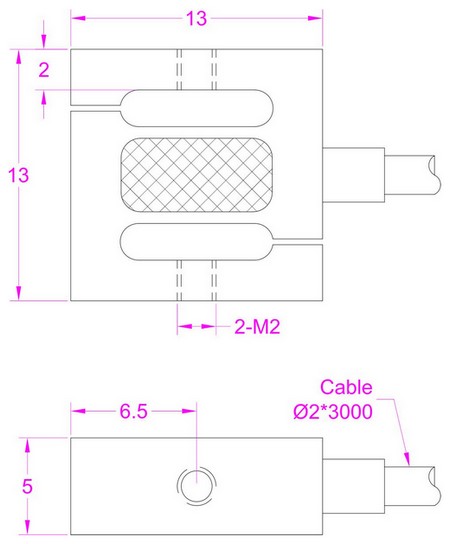

Dimensions：
Searching keywords：
Miniature s-beam load cell,jr s beam load cell,miniature force sensor
