Product > Torque transducer

Square drive rotary torque sensor measure torque

 Model:              FYRD

Capacity:              5NM~1500NM

Material:               Stainless steel

Torque direction:     CW&CCW

Rated output:        1.5mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~15V

Other:                   Customizable

Features:

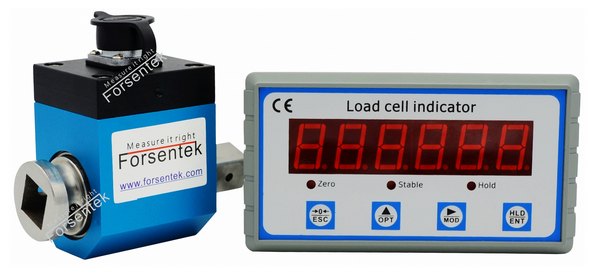

Square drive rotary torque sensor FYRD is a slip-ring type torque transducer based on strain gauge technology.Torque cell FYRD is available in a wide capacity ranging from 5NM up to 1000NM with 3/8" / 1/2" / 3/4" / 1" different square sizes to fit different torque wrenches.Each torsion sensor is provided with a in-house calibration certificate in both clockwise and counterclockwise direction to guarantee product’s performance.The square drive design offers a perfect solution for wrench torque calibration or tightening torque testing.Forsentek can provide both signal conditioner for 0-5V / 0-10V / 4-20mA output or torque indicator to display the torque value in real time.In addition to the standard specifications,model FYRD can be modified or customized to meet your requirements

square drive torque sensor

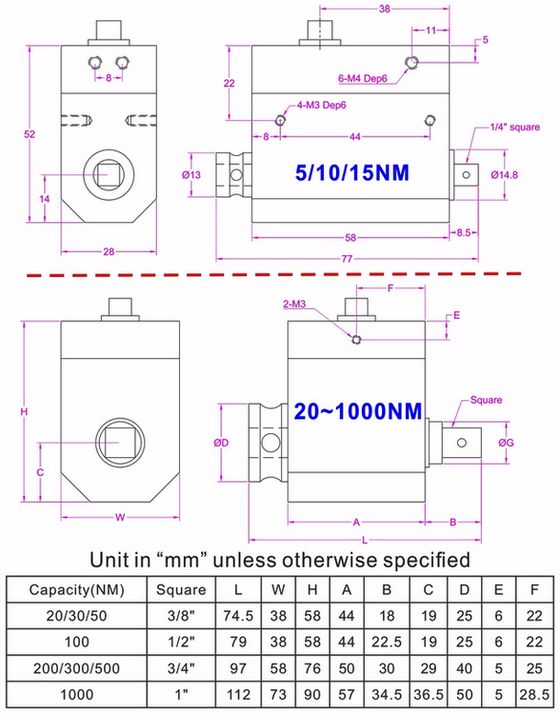

Dimensions:
Searching keywords:
Square drive rotary torque sensor,tightening torque sensor,torque wrench calibration
