Product > Compression load cell

Miniature disc load cell 0-1kN Thin force sensor

Model:                        FCCK

Capacity:                    50/100/200/500/1000N

Type:                          Ultra thin load cell

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~12V

Other:                        Low profile force sensor

Features:

The FCCK subminiature load cell is a compact and low-profile force sensor made of stainless steel, utilizing strain gauge technology for accurate compression force measurement. It is available in five rated capacities: 50N, 100N, 200N, 500N, and 1000N. With an ultra-thin design—just 3.95mm in height and 12.7mm in outer diameter—the FCCK thin load cell is ideal for integration into systems where installation space is extremely limited. Its small footprint makes it well-suited for a wide range of precision applications, including force overload protection, fixture clamping force monitoring, load distribution analysis, die pressing force measurement, as well as use in automated machinery and medical devices. Despite its miniature size, the FCCK disc load cell delivers reliable and stable performance, making it a practical choice for compact assemblies and tight-space instrumentation. Its stainless steel construction ensures durability and resistance to harsh environments, while the adaptable design allows easy incorporation into customized test setups or embedded force sensing solutions.

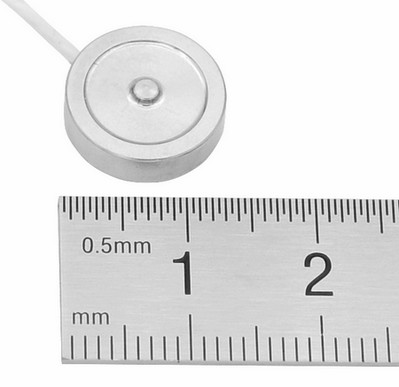

ultra thin load cell

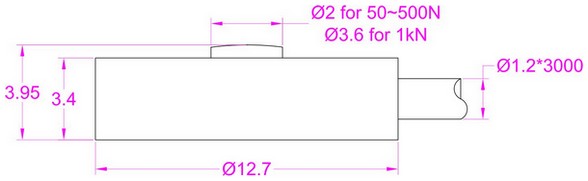

Dimensions:
