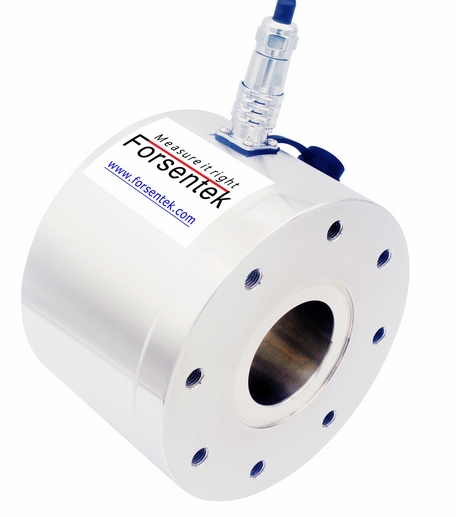

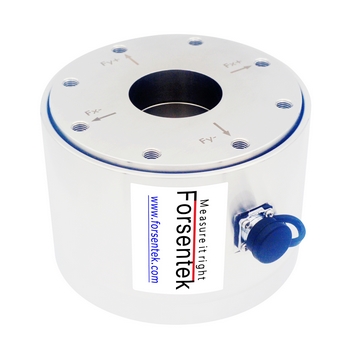

Multi-axis load cell F3T is a stainless-steel-based force sensing device designed for precise three-dimensional force measurement across Fx, Fy, and Fz directions. As a high-performance triaxial load cell, it features a flange-to-flange mounting structure that improves overall rigidity, reduces installation complexity, and ensures stable load transmission under dynamic conditions. With high bridge resistance of 700 ohms and 1400 ohms, the 3D sensor achieves lower power consumption while enhancing signal stability and measurement consistency in demanding environments.

Rated capacities of the 3-axis force sensor are available in multiple ranges, including 5kN-5kN-20kN, 10kN-10kN-40kN, 20kN-20kN-60kN, and 30kN-30kN-100kN, making it suitable for medium to heavy-duty testing applications. Each unit is individually calibrated and supplied with an in-house certificate to guarantee accuracy, repeatability, and full traceability. The Multi-axis force sensor F3T can also be customized to meet specific requirements for advanced testing environments such as wind tunnel experiments, robotic force feedback systems, structural validation, laboratory research rigs, and industrial test platforms.
