Compression load cell 30t 20t 10t 5t 2t 1t 500kg

Model:                        FC60

Capacity:                    0.3~30t on request

Material:                     Stainless steel

Type:                         Compression load cell

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  5~15V

Other:                         Load button style

Features:

The FC60 stainless steel compression load cell is engineered using metal foil strain gauge technology, ideal for accurately measuring press and compression forces in both static and dynamic conditions. It is available in ten rated capacities—300kg, 500kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, and 30 ton—offering a wide selection to meet various industrial needs. The FC60 compression sensor is well-suited for applications such as injection molding machines, press machinery, tooling pressure monitoring, and load distribution analysis, where precision and durability are essential. Its robust stainless steel construction ensures long-term performance even in demanding environments. Forsentek also offers custom design services to tailor the sensor to unique installation or measurement requirements, making the FC60 button type load cell a flexible and reliable solution for a broad range of compression force measurement tasks.

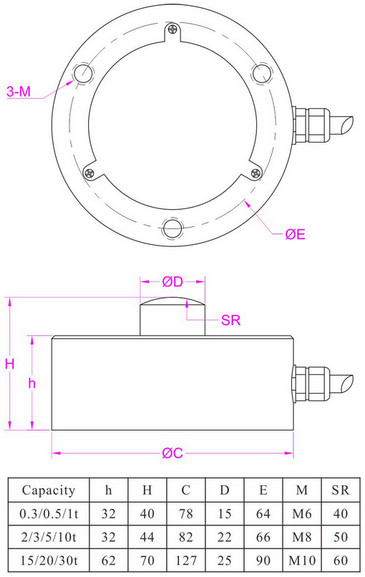

Dimensions:
