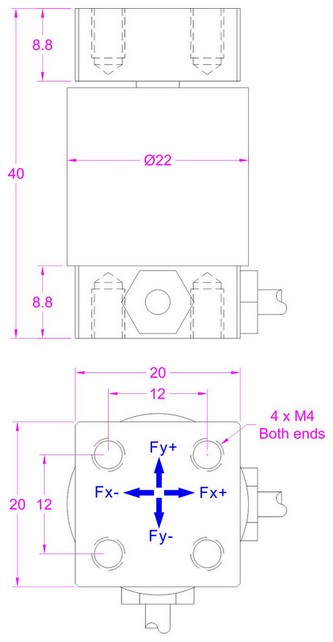

Small biaxial load cell 2-axis force sensor

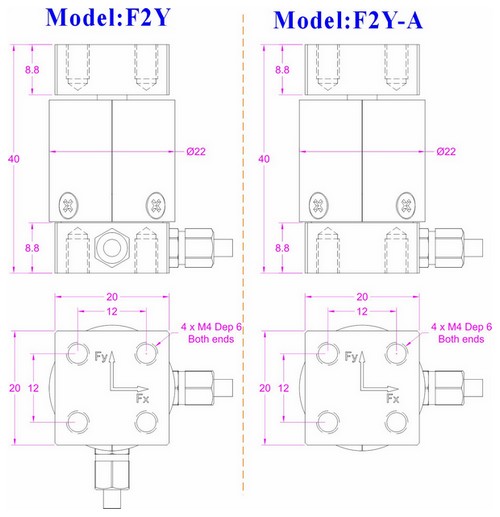

Model: F2Y
Capacity: 1/2/5/10/20/50/100kg
Material: Al/S.S
Load direction: Fx/Fy
Rated output: 1.0~1.5mV/V
Non-repeatability: 0.1% of R.O.
Excitation: 3~12V
Other: Custom-design service
Features:

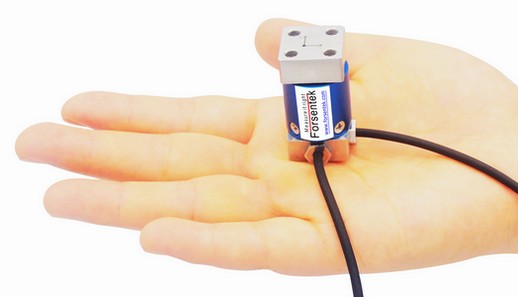

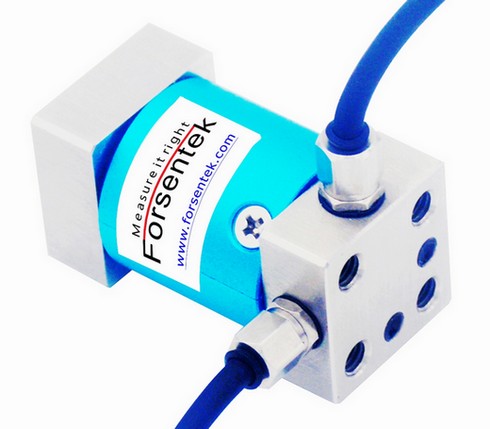

The F2Y miniature bi-axial force sensor employs strain gauge technology with dual full Wheatstone bridge circuits—one for each orthogonal axis (Fx, Fy)—to deliver precise mV/V outputs proportional to applied forces. Featuring top and bottom mounting flanges for secure integration, it supports bidirectional tension and compression measurement across eight capacities (1kg to 100kg) with minimal axis interference. Constructed from high-strength aluminum alloy or stainless steel, the sensor combines a compact footprint with robust performance, ideal for applications requiring space-efficient 2D force monitoring, such as robotic gripper contact force control, tactile feedback systems, or material testing equipment. Customizable options include modified load ranges, specialized flange geometries, and environmental hardening for extreme conditions. The 2-axis load cell F2Y’s adaptable design enables deployment in diverse fields, from biomedical device development (e.g., orthotic pressure mapping) to industrial automation (e.g., assembly line force verification).
