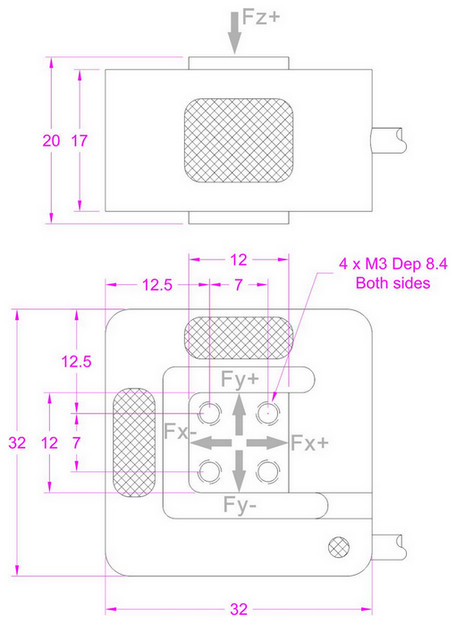

3-axis force sensor 50N 100N 200N 3D load cell
Model: F3P
Capacity: 50/100/200N
Type: Tri-axial force sensor
Load direction: Fx/Fy/Fz
Rated output: 1.0mV/V
Non-repeatability: 0.1% of R.O.
Excitation: 3~12V
Usage: 3-axis force measurement
Features:

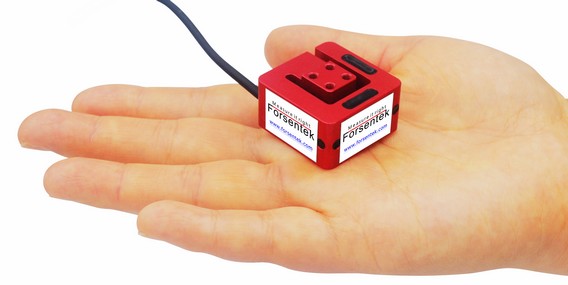

The F3P miniature multi-axis load cell represents our most compact 3-axis force sensor, engineered for precision measurement in space-constrained applications. Constructed from lightweight red anodized aluminum, it employs strain gauge technology with three independent Wheatstone full-bridge circuits—one bonded to each orthogonal axis (Fx, Fy, Fz)—to deliver millivolt-level outputs proportional to applied forces. Available in 50N, 100N, and 200N capacities, the F3P supports bidirectional tension and compression measurement across all axes with minimal crosstalk. Its ultra-compact design enables integration into miniaturized systems requiring high-resolution 3D force feedback, such as medical rehabilitation robots for patient motion analysis or haptic joysticks in surgical devices. The sensor’s anodized housing enhances corrosion resistance while maintaining structural rigidity, making it ideal for applications demanding both precision and durability. Additional use cases include force-controlled prosthetics, micro-assembly robotics, and interactive gaming interfaces where real-time triaxial force monitoring is critical.
