Miniature stainless steel pancake load cell

Model:                        FCMR

Capacity:                    0-2000kg

Material:                     Stainless steel

Type:                         Pancake load cell

Rated output:              1.5mV/V

Non-repeatability:      0.3% of R.O.

Excitation:                  3~15V

Connection:                 M10*1.5 / M16*1.5

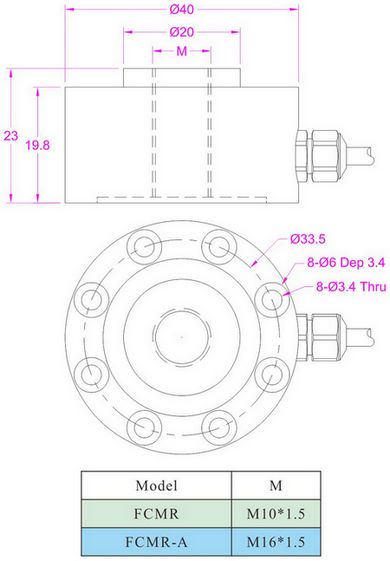

Miniature pancake load cell FCMR is made from stainless steel intended for both tension and compression force measurement with 100kg, 200kg, 500kg, 1000kg and 2000kg five rated capacities. The compact load cell FCMR incorporates a M10x1.5 (or an optional M16x1.5) threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons, eye bolts or other adapters for force loading in different scenarios. Pancake load cell FCMR can also be modified or customized upon request.
