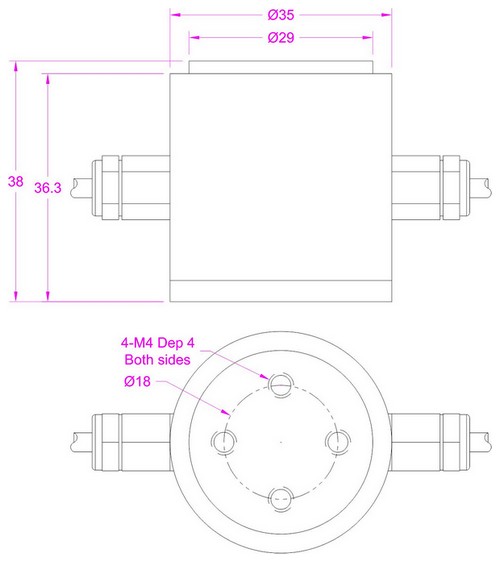

2-axis load cell 6NM-700N force torque sensor

Model:                        FFT-M

Material:                    Stainless steel

Type:                          Biaxial force sensor

Mounting:                  Flange-to-flange

Rated output:              1.0mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3-15V

Measurement:            Force and torque


Force torque biaxial load cell FFT-M is made of stainless steel intended for both moment and force measurement. Torque and thrust sensor FFT-M adopts flange-to-flange design which enables it to be easily mounted. Multi-axis sensor FFT-M consists of two independent wheatstone full bridges, one for torque channel with 6NM capacity for both clockwise and CCW measurement, the other for force channel with 700N capacity for both tension and compression measurement. Custom made service is available for similar structure with different measuring ranges.

Searching keywords:
Torque and thrust sensor,biaxial load cell
