Mini button type flat load cell compression sensor

Model:                        FCCU

Capacity:                    10/20/50/70kg

Material:                     Stainless steel

Type:                          Flat button

Rated output:              1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~12V

Other:                        Compression sensor

Features:

Miniature button type flat load cell FCCU features a circular loading plane on top of the transducer, which makes it easier to load the transducer compared to traditional button load cells. Micro compression sensor FCCU is made of stainless steel offering 0-10kgf / 0-20kgf / 0-50kgf / 0-70kgf four rated measuring ranges. The compact size makes mini flat force sensor FCCU a great choice for automation applications with limited installation space.

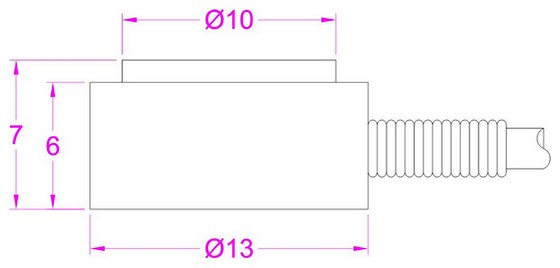

Dimensions:
Searching keywords:
Miniature compression sensor,button load cell with flat surface
