Product > Compression load cell

Miniature load column load cell 0-15ton

Model:                        FLCA

Capacity:                    1/2/5/7.5/10/15T

Material:                     Stainless steel

Type:                          Column load cell

Rated output:              2.0mV/V

Non-repeatability:      0.3% of R.O.

Excitation:                  3~12V

Load direction:           Compression

Features:

The miniature column load cell FLCA offers an impressive compact design with high measuring ranges from 1ton to 15ton. The canister load cell FLCA is made of stainless steel intended for compression force measurement applications where size is a critical factor. Custom made service is available if the listed specifications are not applicable.

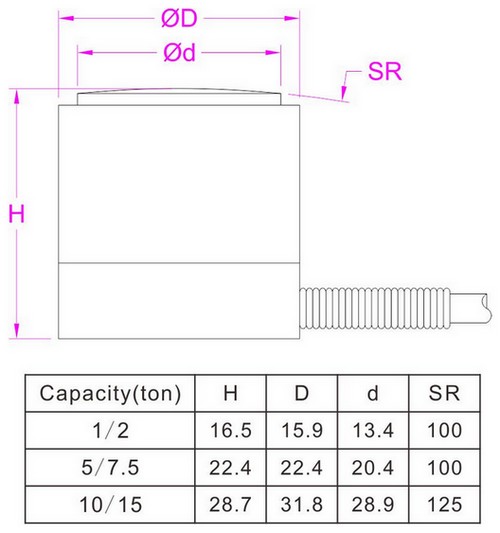

Dimensions:
Searching keywords:
Column type load cell,canister load cell
