Flange type reaction torque transducer 0-200Nm

Model:                        FTFA

Type:                          Stationary

Usage:                       Torque measurement

Mounting:                  Flange-to-flange

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Torque range:             10/20/30/50/100/200Nm

Features:

Reaction torque transducer FTFA made of stainless steel intended for non-rotating torque measurement in both clockwise and anticlockwise direction. Static torque sensor FTFA offers 10N*m / 20N-m/ 30N*m / 50Nm / 100Nm / 200Nm six rated capacities to choose from. 4*M10 threaded flanges located on both sides of the transducer can be used for bolting between shafts,switches or mounting plates. Each sensor will come with a 3 meter long cable and an inhouse calibration report to make sure our clients receive qualified products. Flange type torque load cell FTFA can also be modified for customized upon request.

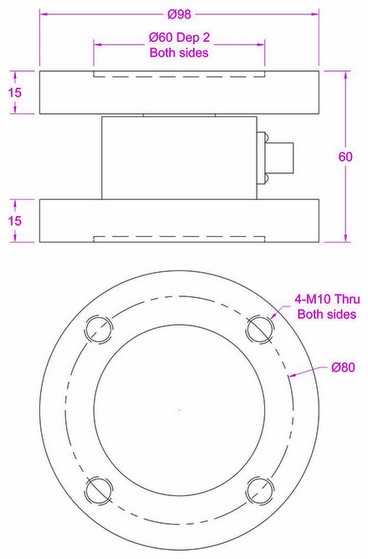

Dimensions:
