Rod end load cell 0-3000kN force transducer

Model:                        FLB

Capacity:                    0~3000kN

Type:                          Threaded inline

Load direction:           Traction/compression

Rated output:              2.0 mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

Rod end load cell FLB is made of high stiffness alloy steel based on strain gauge technology intended for both compression and tension force measurement. Inline load cell FLB is featured with threaded rods on both sides for easy mounting, available in 100kN / 200kN / 300kN / 500kN / 700kN / 1000kN / 2000kN / 3000kN eight rated capacities, you may find traction compression sensor FLB applicable for material testing, cylinder thrust measurement, hydraulic actuator testing, laboratory measurements and so on.

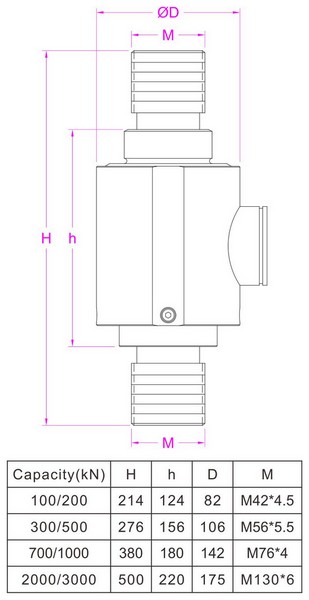

Dimensions:
