Product > Compression load cell

IP68 stainless steel canister load cell 0-100ton

Model:                        FHCY

Capacity:                    0-100 ton

Type:                         Canister/Column type

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  5~15V

Material:                   Stainless steel

Features:

The FHCY heavy-duty compression load cell is a robust and reliable force sensor made from stainless steel, available in six rated capacities: 5 ton, 10 ton, 25 ton, 40 ton, 60 ton, and 100 ton. Designed in a column-type structure, it is temperature-compensated and hermetically sealed to an IP68 protection rating, ensuring long-term stability and accurate performance even in harsh industrial environments and outdoor applications. Its rugged construction and environmental resistance make it well-suited for demanding use cases such as hydraulic testing machines, silo and hopper weighing systems, truck and railroad scales, and other heavy-load measurement scenarios. The FHCY canister load cell delivers consistent and precise compression force data, making it a dependable choice for high-capacity weighing and force monitoring tasks.

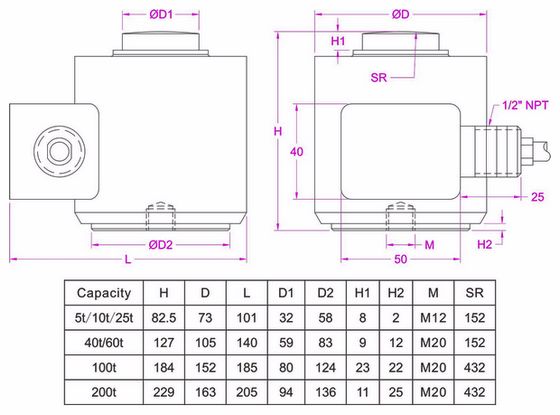

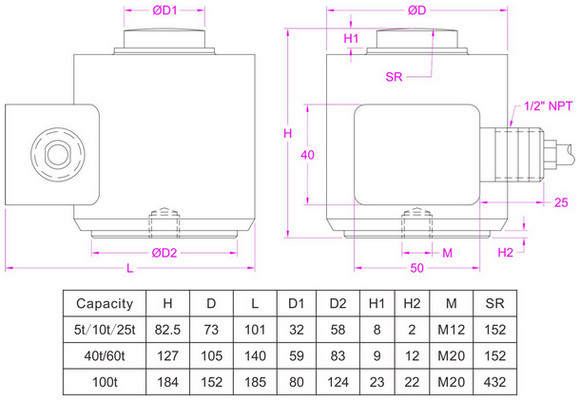

Dimensions:
