Product > Beam load cell

IP68 Shear beam load cell for hopper scales

Model:                        FHSB

Capacity:                    0~5 ton

Material:                     Stainless steel

Type:                         Shear beam loadcell

Rated output:              2.0mV/V

Non-repeatability:      0.018% of R.O.

Excitation:                  3~15V

Usage:                        Hopper weighing

Features:

Single ended shear beam load cell FHSB is made of stainless steel and IP68 hermetically sealed which assures long-term reliability and durability in harsh or corrosive environments. Load sensor FHSB offers 250kg / 500kg / 1ton / 2ton / 2.5ton / 3ton / 5ton rated capacities with C3 accuracy class which makes FHSB a high quality option for medium to high capacity weighing applications in industrial field. Mounted with the corresponding mounting kits, shear beam load cell FHSB is most commonly used in waste management scales, process hopper scale and tank weighing system.

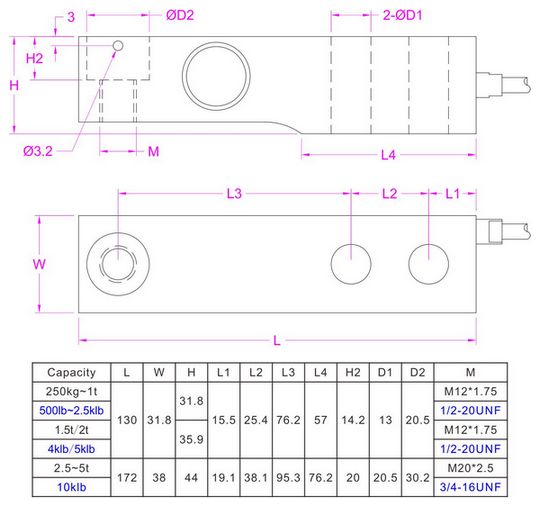

Dimensions:
