Product > Beam load cell

RS485 output load cell for smart warehouse

Model:                        FDNB

Capacity:                    10kg/20kg/30kg/40kg

Output:                       RS485

Type:                          Digital load cell

Protocol:                     Modbus RTU

Non-repeatability:      0.01% of R.O.

Excitation:                  5~12V DC

Usage:                        Smart warehouse

Features:

Single point digital load cell FDNB supports RS485 Modbus RTU output with 0-10kg / 0-20kg / 0-30kg / 0-40kg four rated measuring ranges to choose from. Weighing sensor FDNB utilizes a built-in microprocessor to convert mV signal into digital output, which makes digital load sensor FDNB more stable and accurate compared to load cells with analog output. Weight transducer FDNB is corner trimmed for off-center load measurement with platform sizes up to 300x300mm and able to deliver stable measuring results in a wide temperate range thanks to its temperature compensation process. Typical applications of digital load cell FDNB are for example smart shelves, vending machines, unmanned stores, intelligent warehouse management and so on.

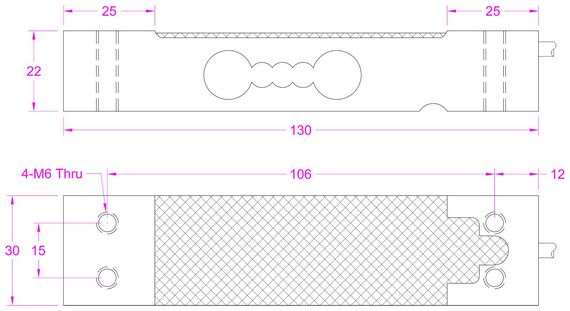

Dimensions:
