Product > Tension compression load cell

Miniature cylindrical load cell Micro force sensor

Model:                        FLAE

Mounting:                   M3 threaded hole

Type:                          Cylindrical load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Capacity:                   10/20/50/100/200N

Features:

Miniature tension compression load cell FLAE utilizes metal foil strain gauge technology intended for both tension and compression force measurement. Micro cylindrical force sensor FLAE offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N five rated measuring ranges to choose from, compact size with only 10mm diameter, high accuracy with maximum 0.2% non-linearity of the full capacity. Miniature column type load cell FLAE features M3 threaded holes on two sides which can be used to mount attachments or implements to adapt to different force measurement scenarios.

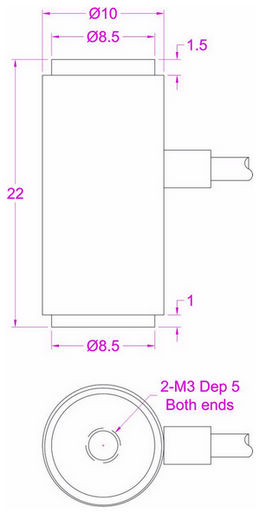

Dimensions:
Searching keywords:
Micro force sensor,miniature force transducer,column load cell,cylindrical load cell
