Inexpensive load cell 0-20kg Cheap weight sensor

Model:                        FHD/FHDA

Capacity:                    1/2/3/5/10/20kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              1.0±0.15 mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~12V

Other:                         Custom-design service

Features：

Low cost load cell sensor FHD/FHDA is available in 1kg / 2kg / 3kg / 5kg / 10kg / 20kg six rated capacities with 1.0 mV/V output from full wheatstone bridge bonded on aluminum structure. Miniature weight sensor FHD/FHDA delivers good accuracy with compact size, can be loaded in both compression and tension direction. You may find inexpensive load cell FHD/FHDA ideal for mass production applications such as force simulators, home appliances, Arduino based weight measuring projects, and so on.

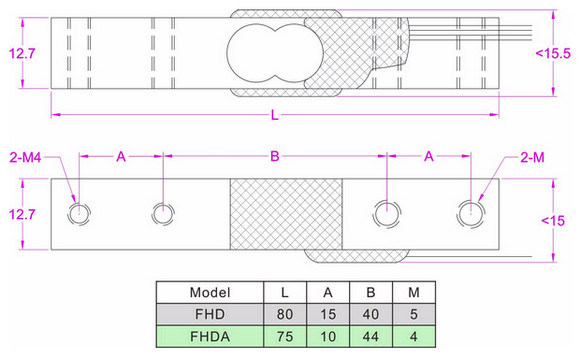

Dimensions：
Searching keywords：
Low cost load cell,micro weight transducer,affordable load sensor
