Product > Torque transducer

Pedestal mount shaft rotary torque transducer

Model:                        FYTH

Capacity:                    0~100Nm

Material:                     Stainless steel

Load direction:           Clockwise&CCW

Rated output:              ±5V/±10V/4-20mA

Non-repeatability:      0.2% of R.O.

Excitation:                  24V/12V DC

Other:                         Custom-design service



Features:

Contactless rotary torque speed sensor FYTH is produced based on non-contact rotary transformer technology intended for both torque and rotating speed measurement. Dynamic torque transducer FYTH offers 0-1NM / 0-2NM / 0-3NM / 0-5NM / 0-10NM / 0-20NM / 0-30NM / 0-50NM / 0-100NM nine rated ranges supporting up to 12000rpm with 0-5V , 0-10V or 4-20mA output. Keyed shafts on both sides of the sensor can connect to motor and load through couplings, the pedestal mount design is ideal for motor testing or anywhere a base-mounted torque sensor is required. Typical applications of torque meter FYTH are torque measurement of servo motors, engines, pumps, agitators and so on.

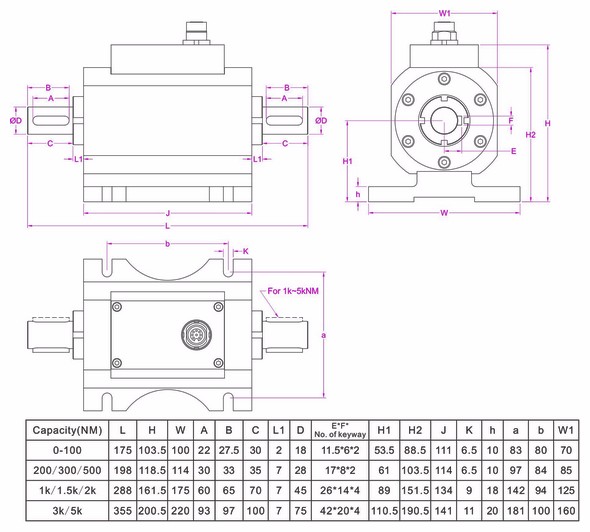

Dimensions:
Searching keywords:
Contactless rotary torque sensor,dynamic torque transducer,motor rotating torque measurement
