Product > Torque transducer

Thru hole thin joint torque sensor Customizable

 Model:              FTHB

Capacity:              5/10NM

Material:               Stainless steel

Torque direction:     CW&CCW

Rated output:        1.0mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~12V

Other:                   Customizable

Features:

Thin joint torque sensor FTHB is characterized by its low profile and disk-shaped design,which makes it possible to integrate the torque transducer into robot joints or drives without taking up a significant amount of installation space. Hollow torque transducer FTHB is able to measure torque in both clockwise and anti-clockwise direction. Besides the listed dimensions and capacities, Forsentek is also willing to provide custom design service according to clients’ specific requirements.

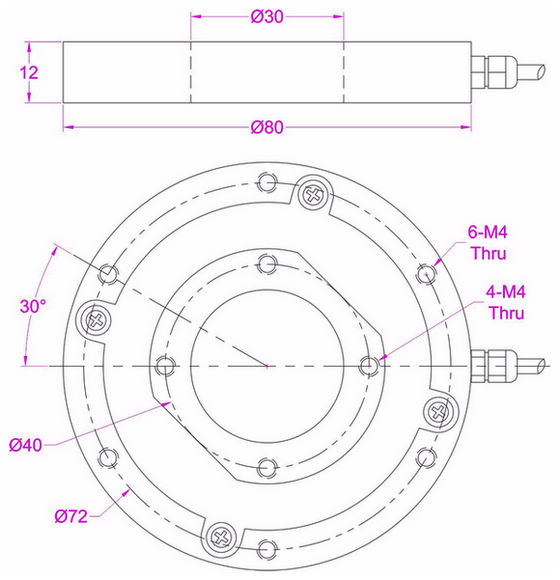

Dimensions:
Searching keywords:
Low profile torque transducer,robot actuator torque measurement,robot torque sensor
