Multi axis force sensor 50kN 100kN 200kN 3D sensor

Model:                        F3K

Capacity:                    50kN/100kN/200kN

Material:                     Alloy steel

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of F.S.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

3-axis load cell F3K is made of alloy steel based on foil strain gauge intended for three-dimensional force measurement with 50kN / 100kN / 200kN three rated capacities for Fx/Fy/Fz axis to choose from. Each axis consists of a wheatstone full bridge to deliver mV/V output proportional to the force being measured, 0-5V/0-10V/4-20mA output is available through external multi-channel signal amplifier, all three axes support both tension and compression force measurement. Multi component force sensor F3K can be modified or customized according to clients’ requirements. Typical applications for triaxial force transducer F3K are for example actuator operating force measurement, grinding force control, orthopedics and biomechanical research, automotive experiments,force exertion control in robotics, industrial test benches and so on.

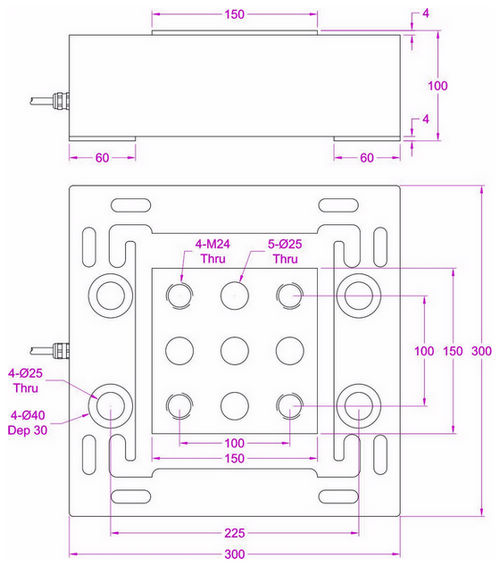

Dimensions:
Searching keywords:
3 axis force transducer,multi-axis load cell,triaxial force sensor,3D load cell
