Product > 3-axis load cell

Triaxial force sensor 0-50kN 3-component load cell

Model:                        F3J/F3H

Capacity:                    2kN~50kN

Material:                     Alloy steel/S.S.

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of F.S.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Multi component force sensor F3H is made of stainless steel(Alloy steel for model F3J) with 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN seven measuring ranges for all three axes to choose from. Independent wheatstone full bridge is bonded for each axis to provide mV/V output which is proportional to the applied force, all three axes(Fx/Fy/Fz) are capable of measuring force in both tension and compression direction without mathematical manipulation. Triaxial load cell F3J/F3H can be modified or customized as per clients’ requirements if needed. Typical applications for 3-axis force transducer F3J/F3H are for example actuator operating force measurement, grinding force control, force exertion control in robotics, industrial test benches and so on.

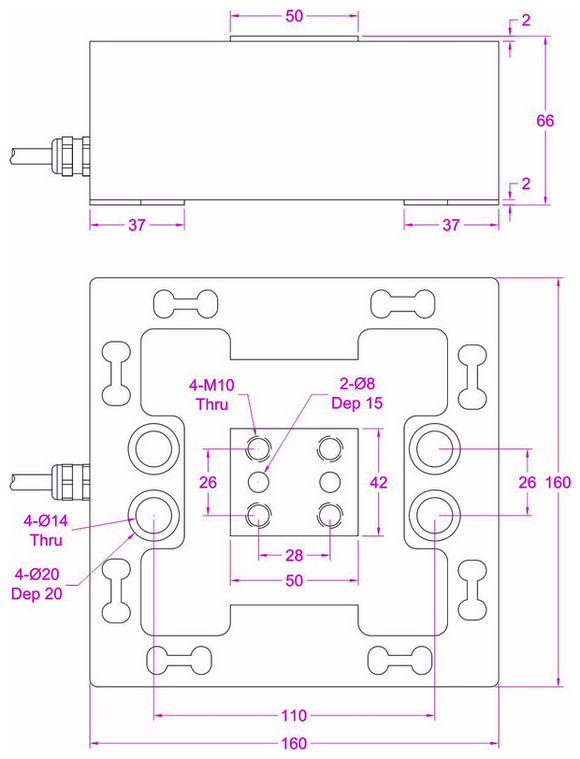

Dimensions:
Searching keywords:
Multi axis force sensor,triaxial load cell,3-axis force transducer
