High capacity thru hole flange torque transducer

Model:                        FT3E

Capacity:                    5kNM~100kNM

Material:                     Alloy steel

Load direction:           Clockwise&CCW

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

High capacity flange type through hole torque transducer FT3E is a reaction type torque measuring unit intended for non-rotating torque measurement in both clockwise and anticlockwise direction.FT3E series deliver a maximum 0.5% non-linearity of the full scale over a wide measuring range from 5000Nm to 100kNm. Torque load cell FT3E is designed with end flanges for bolting between shafts, axes or mounting plates where a direct drive is required. The center thru hole can be used to pass through a rotating shaft,which makes measuring rotating torque possible under proper configuration. You may find torque transducer FT3E suitable for applications such as actuator torque examination, screw driver calibration, test bench applications, material fatigue testing and so on.

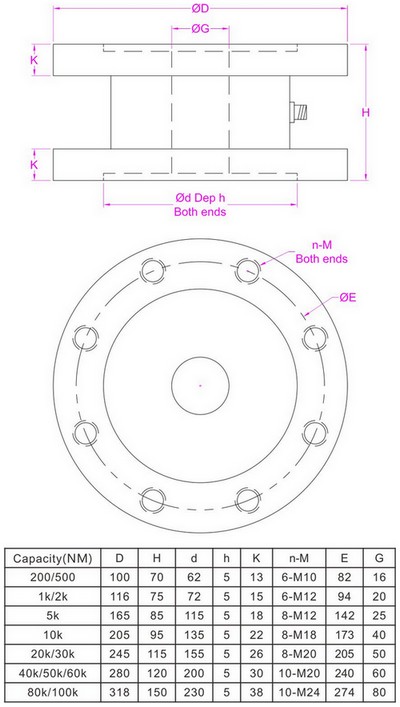

Dimensions:
Searching keywords:
Flange torque sensor,through hole torque transducer,high capacity torque sensor
