In-line load cell M24 Rod end force sensor

Model:                        FLR

Capacity:                    5kN~50kN

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.5 mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features:

Rod end load cell FLR is made of stainless steel utilizing strain gauge technology intended for both tension and compression force measurement with 5kN / 10kN / 20kN / 30kN / 50kN five rated capacities to choose from.M24 metric threaded rods located on both ends enables transducer FLR to be easily embedded into mechanical shaft .Compact design makes FLR applicable for force measurement applications with limited mounting space.The standard FLR in-line load cell can be modified or customized to meet your requirements.

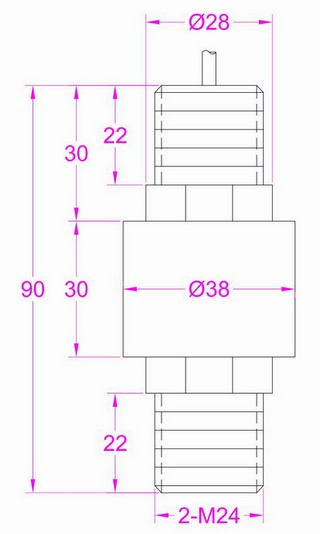

Dimensions:
Searching keywords:
Inline force snesor,tension load cell,tension and compression force measurement
