Flange type force transducer column load cell

Model:                        FFA

Capacity:                    200N~20kN

Type:                          Cylinder load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Mounting:                  Flange force sensor

Features:

Flange type force transducer FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of the full scale. Cylindrical force sensor FFA offers 0-200N / 0-500N / 0-1kN / 0-2kN / 0-5kN / 0-10kN / 0-20kN seven measuring ranges to choose from intended for both tension and compression force measurement. You may find column load cell FFA applicable for assembly force monitoring, force distribution analysis, spring testing, welding clamp force control, hand press force verification,etc.. Custom design is available if you fail to find a suitable model from our product portfolio.

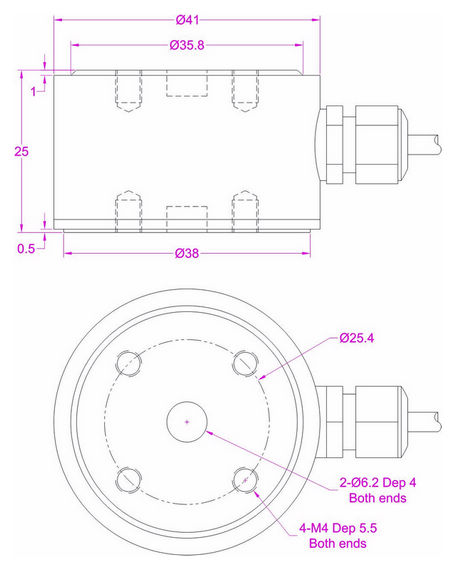

Dimensions:
Searching keywords:
Flange force sensor,cylindrical load cell,flange type load cell
