Product > Beam load cell

Platform load cell stainless steel weight sensor

Model:                        FHPT

Capacity:                    100kg-600kg

Type:                         Off Center Load Cell

Load direction:           Compression

Rated output:              2.0 mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Application:                Platform scales

Features:

Platform load cell FHPT is made of stainless steel based on strain gauge technology offering 100kg / 150kg / 200kg / 300kg / 500kg / 600kg six measuring capacities to choose from. It is corner trimmed for platform sizes up to 800x800mm, suitable for off-center load measurement. Waterproof load cell FHPT is temperature compensated and laser welded with IP69K ingress protection level,which makes it capable of delivering accurate results even under harsh working conditions such as outdoor applications and food industry with regular washdowns. Dynamic load transducer FHPT can work as a low cost substitute for ptglobal PTSSP6-GW, Anyload 651KSCS, scaime AK 300, Soehnle SEB56B with uncompromised quality. You may find model FHPT applicable for bagging, filling and dosing machines, checkweighers, pharmaceutical industry, small bucket and hopper weighing systems,etc..

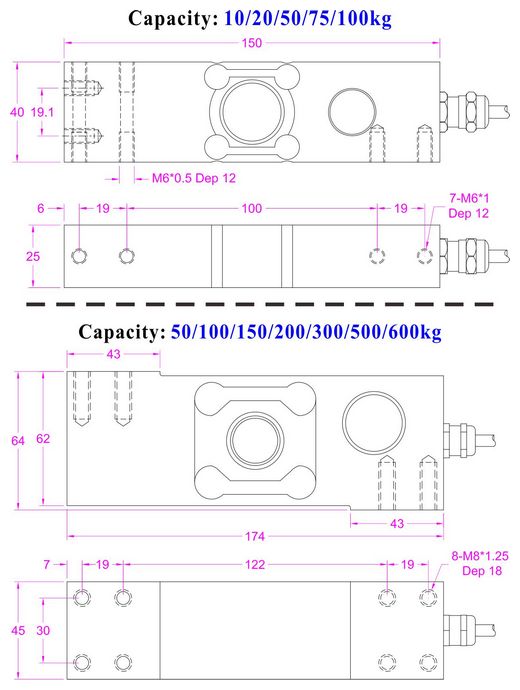

Dimensions:
Searching keywords:
Platform load cell,waterproof load cell IP69K,off-center loadcell,weight transducer
