Product > Beam load cell

IP68 Dynamic load cell 6kg 12kg 30kg 60kg

Model:                        FHPS

Capacity:                    6kg-60kg(25/50/100lb)

Material:                     Stainless steel

Load direction:           Compression

Rated output:              2.0 mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Stainless steel dynamic load cell FHPS is strain gauge based with 6kg / 12kg / 15kg / 30kg / 60kg (25lb / 50lb / 100lb) rated capacities to choose from.High accuracy with temperature compensation process,corner trimmed for platform sizes up to 350x350mm,IP68 hermetically sealed,off-center load cell FHPS is able to deliver accurate reproducible measuring results over long term even in harsh conditions,single point load cell FHPS is ideally suited for use in the chemical industry, food industry ,pharmaceutical industry, bagging, filling and dosing machines,checkweighers,etc.. You may find model FHPS interchangeable with Anyload 651HS, VPG Revere HPSM, Zemic BM6A, Scaime AK 60, Siemens SIWAREX WL260 SP-S SB but with lower cost.

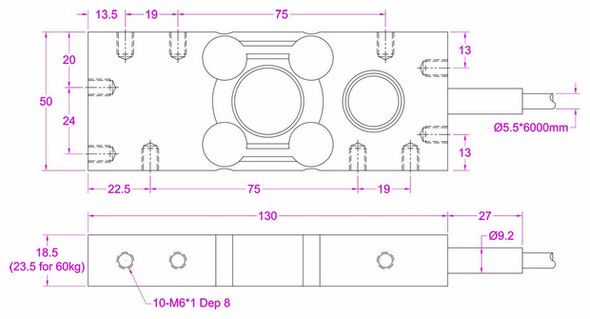

Dimensions:
Searching keywords:
Single point load cell 50lb,dynamic load cell 100lb,checkweigher load cell
