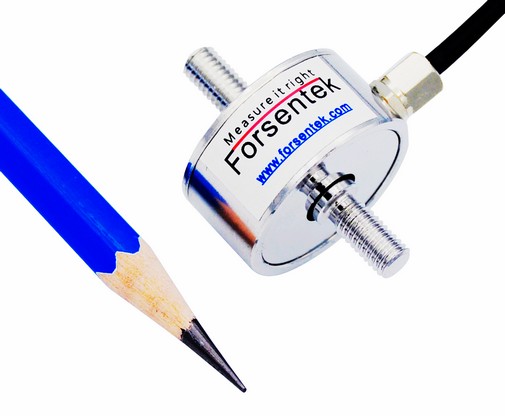

Tension compression load cell|In line load cell

Model:                        FL25

Capacity:                    10kg~100kg

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Tension compression load cell FL25 is made of 17-4 stainless steel which offers rugged structure for industrial applications.Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement.

The force sensor FL25 can be easily mounted to existing system through M5 or M6 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt,bolt adapter,etc.,to fit different usage requirements.

Model FL25 uses metal foil strain gauge technology with 2.0mV/V rated output,ranges from 10kgf up to 100kgf with maximum 0.5% non-linearity.Each sensor is integrated with a 4-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of  connectors for electrical connection.

If you find the existing models don’t fit your application,Forsentek also provides custom design service,here are some customizable parameters:

Measuring range
Dimensions
Working temperature
Ingress protection level
Cable and connector
Dimensions:
