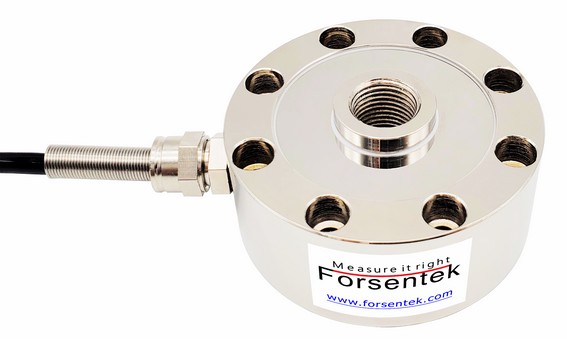

Pancake load cell 50kg 100kg 200kg 500kg 1000kg

Model:                        FCMA

Capacity:                    0-1000kg on request

Type:                          Pancake load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Other:                         Universal force sensor



Features:

Pancake Load Cells represent one of the most common designs offered for force measurement applications because their low profile construction can be installed within limited space.Universal load cell FCMA is a scaled down version of model FCM utilizing metal foil strain gauge technology delivering excellent accuracy, which offers 0-30kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg / 0-500kg / 0-1000kg seven different measuring ranges with maximum 0.1% non-linearity of the rated capacity. This low profile load cell incorporates a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other threaded assemblies for force loading. Model FCMA provides a comprehensive force measurement solution for static and dynamic forces in both tension and compression direction. You may find transducer FCMA suitable for in-line force monitoring, injection-molding machines, press machines, material testing equipment, etc..

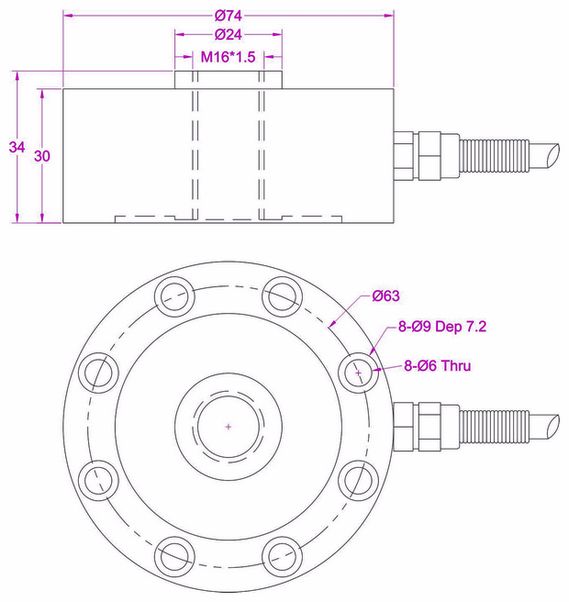

Dimensions:
