Product > Tension compression load cell

Low profile flange load cell 0-20kN Customizable

Model:                        FFD

Capacity:                    2kN~20kN

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Flange load cell FFD is made of stainless steel utilizing strain gauge technology to deliver maximum 0.2% non-linearity.Flange force sensor FFD is intended for both tension and compression force measurement with 2kN / 3kN / 5kN / 10kN / 20kN five different measuring ranges to choose from. Flange to flange configuration makes mounting easy and solid,low profile design with total 25mm height makes FFD applicable for applications where mounting space is limited.In addition to the standard specifications,Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

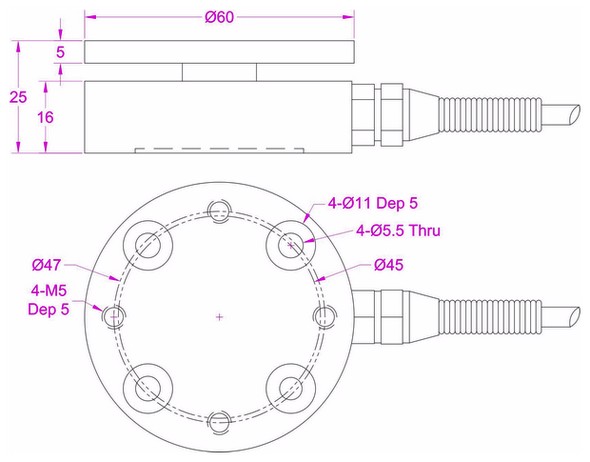

Dimensions:
Searching keywords:
Flange load cell,low profile load cell,flange force sensor
