Robot torque sensor Robot joint torque measurement

 Model:              FTHC

Capacity:              5/10/20/30/40NM

Material:               Stainless steel

Torque direction:     CW&CCW

Rated output:        1.0mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~12V

Other:                   Customizable



Features:

Robot torque sensor FTHC is specially designed for robotic joints torque measurement in both clockwise and anticlockwise direction.Torque transducer FTHC offers 5NM / 10NM / 20NM / 30NM / 40NM five standard measuring ranges with unamplified mV/V output to choose from.The low profile design,through hole and flange-to-flange structure makes it easy to be assembled with robotic joints.Robot arms are normally driven by servo or stepper motor,a reaction torque sensor like FTHC can be used to monitor the torque output to achieve a smoother motion control,you may also find it applicable for rotating torque measurement in many cases.For different measuring ranges and mounting specifications,please contact us for custom design solutions.

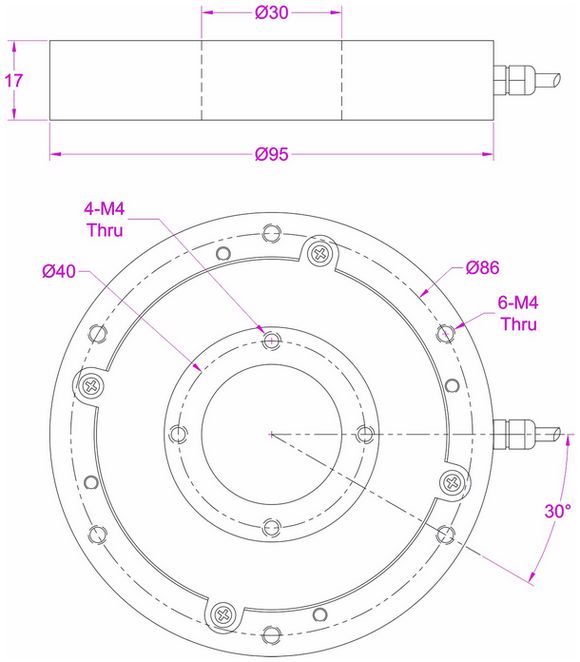

Dimensions:
Searching keywords:
Robot torque sensor,through hole torque sensor,low profile torque sensor
