Low profile load cell tension compression sensor

Model:                        FLCE

Capacity:                    500N~5kN

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Low profile load cell FLCE is made of stainless steel based on strain gauge technology intended for both tension and compression force measurement.The metric M12*1.75 threaded holes located on both ends can be used to mount attachments such as eye bolts,bolt adapters,etc.,to fit different purposes.Force sensor FLCE offers 500N/1kN/2kN/3kN/5kN measuring ranges with maximum 0.3% non-linearity,the compact design also makes it suitable for applications with limited mounting space.Tension compression load cell FLCE can be modified or customized according to client’s specific requirements.

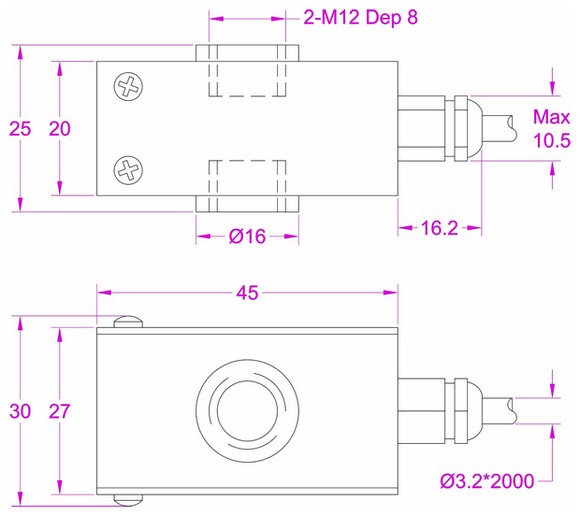

Dimensions:
