Weighing module for hopper weighing system

Model:                        FHMT

Capacity:                    220kg~4400kg

Material:                     Stainless steel

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Weighing module FHMT offers 220kg/550kg/1100kg/2200kg/4400kg measuring range each,normally used in a combination of 3pcs or 4pcs to be mounted under tank legs or hopper saddle plates.Both load cell and mounting assemblies are made of stainless steel,load cell is IP68 hermetically sealed by laser welding,which makes weighing module FHMT suitable for both indoor and outdoor applications.You may find weighing assembly FHMT suitable for applications such as milk tank weighing,concrete tank weight monitoring,hopper weight measurement,level and process control,etc..

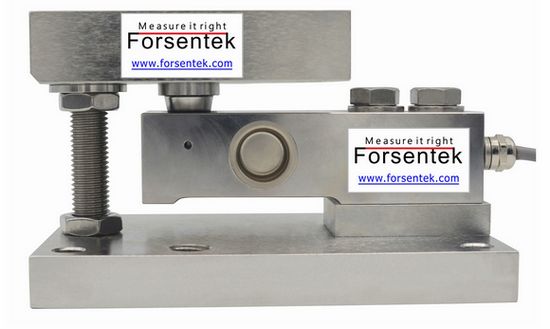

load cell assembly
