Product > Compression load cell

Leveling foot load cell|Machine foot load cell

 Model:              FCLF

Capacity:              0.5/1/1.5/2t

Material:               Stainless steel

Load direction:     Compression

Rated output:        2.0mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~15V

Other:                   Customizable

Features:

Foot load cell FCLF is made of stainless steel,the unique design combines load cell and machine foot in one unit which makes it applicable to existing structure.Weight sensor FCLF is designed with metric M12 threaded rod which can be connected to machine feet easily,normally in a group of 3pcs or 4pcs.After installation,the load cells will be self-balanced to be perpendicular to the ground.Load sensor FCLF offers 500kg/1000kg/1500kg/2000kg measuring ranges with the same mounting size.You may find FCLF suitable for applications such as real-time inventory monitoring,tank weighing, hopper weighing,etc..

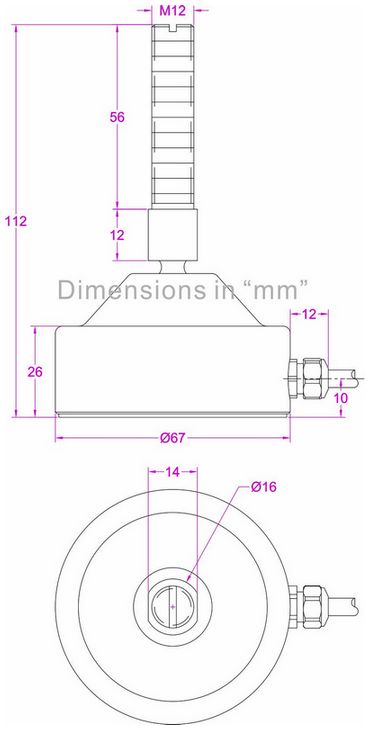

Dimensions:
Searching keywords:
Leveling foot load cell,machine foot load cell,Swivel foot load cell
