Product > Beam load cell

Low cost load cell sensor 30kg 20kg 10kg 5kg

Model:                  FMZU

Capacity:              5kg-30kg

Material:               Aluminum alloy

Load direction:      Tension/compression

Rated output:        1.0mV/V

Non-repeatability:   0.05% F.S.

Excitation:              3~10V

Other:                   Customizable

Features:

Low cost load cell sensor FMZU offers 5kg/10kg/20kg/30kg measuring range with the same mounting dimensions, unamplified mV/V output from wheatstone full bridge with maximum non-linearity of 0.1% R.O. which makes it suitable for weight measurement applications with limited space without compromising the measuring accuracy.

Low profile load cell FMZU weighs only about 12 grams including 100mm cable;low power consumption thanks to 1000 ohms high resistance wheatstone bridge which makes weight sensor FMZU suitable for portable instruments powered by battery.Small load sensor FMZU is also very cost-effective if you are looking for a cheap weighing solution.

In addition to the standard product portfolio,Forsentek is also capable and willing to customize load cells and force sensors to meet customers’ requirements.

miniature load sensor

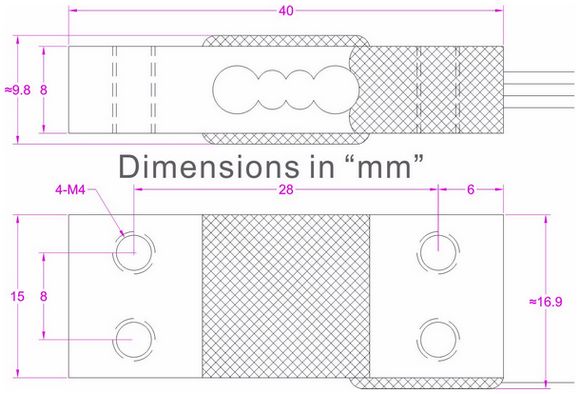

Dimensions:
Searching keywords:
Low cost load cell,cheap load cell,small load cell,miniature load cell,load cell small size
