Product > Beam load cell

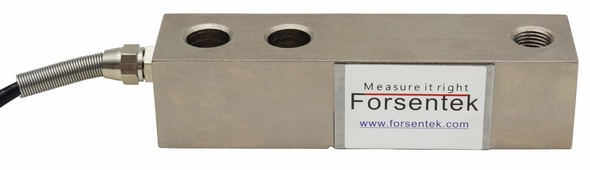

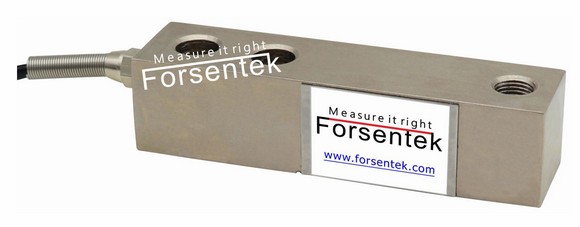

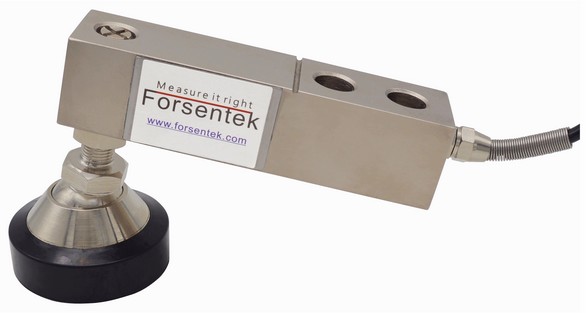

IP67 Shear beam load cell 1klb-20klbs

 Model:              FH8C

Capacity:              0~10t

Material:               Alloy steel

Load direction:     Compression

Rated output:        3.0mV/V

Non-repeatability:   0.017% F.S.

Excitation:              3~15V

Other:                   Customizable

Features:

Shear beam load cell FH8C utilizes strain gauge technology to deliver 3.0mV/V rated output with wide measuring ranges from 100kg up to 10 ton to choose from, temperature compensated with maximum 0.02% non-linearity. High accuracy, competitive price, IP67 hermetically sealed, you may find loadcell FH8C applicable for platform scales, batch weighing, hopper scales, garbage weighing system, medical bed weighing,etc..

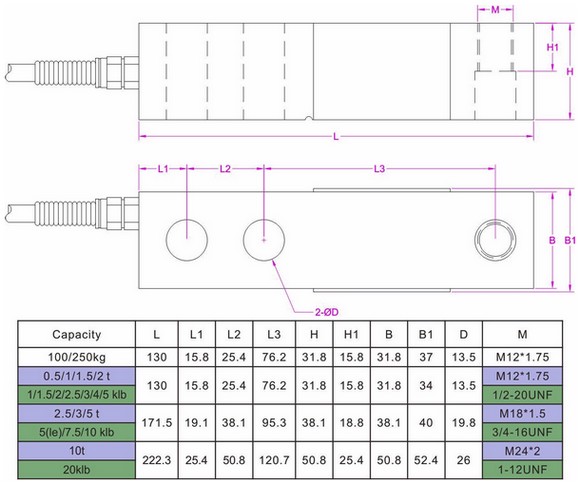

Dimensions:
Searching keywords:
Shear beam load cell,single ended beam load cell,IP67 load cell
