M8 threaded tension compression sensor 0-2kN

Model:                       FSSG

Capacity:                   500N/1kN/2kN

Type:                          Miniature force sensor

Load direction:           Compression/Traction

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

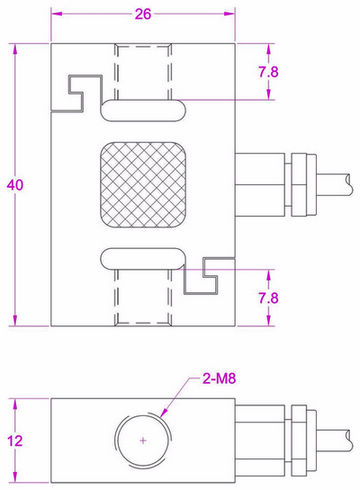

Connection:                 M8 female thread


Miniature compression and traction load cell FSSG is a strain gauge type load cell made from stainless steel intended for both tension and compression force measurement. Push and Pull Force Transducer FSSG offers 0-500N / 0-1kN / 0-2kN three rated measuring ranges with maximum 0.1% non-linearity of the full capacity, each sensor is equipped with a 4-meter-long 4-core shielded cable. M8 threaded holes located on both ends can be used to mount attachments such as load buttons, eye bolts, hooks to meet requirements of different applications. Traction force sensor FSSG can also be modified or customized as per client’s request.
