Flange load cell|Flat load cell thrust sensor

Model:                        FCPC

Capacity:                    5kN-50kN

Type:                          Thrust sensor

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Mounting:                 Flange-to-Flange

Features:

Flange type compression load cell FCPC is strain gauge based with full wheatstone bridge configuration delivering mV/V output. Thrust load cell FCPC offers 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN five rated measuring ranges intended for compression load measurement. Stainless steel construction, flanged mounting surface, you may find force transducer FCPC applicable for fixture clamping force measurement, electric putter thrust measurement, hand press force verification, and so on.

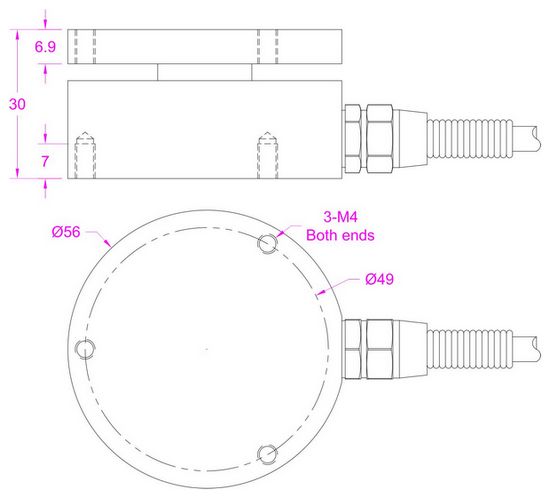

Dimensions:
