Product > Torque transducer

Force torque sensor|2 axis force sensor

 Model:              FFT

Capacity:              20NM/3KN

Material:               Aluminum

Measurement:      Torque&force

Rated output:        1.5mV/V

Non-repeatability:   0.2% F.S.

Excitation:              3~15V

Other:                   Customizable

Features:

Force torque sensor FFT is designed to measure reaction torque moments as well as tension/compression loads at the same time.Torque and thrust sensor FFT is metal foil strain gauge based and has two separate outputs for applied torque(Mz=20NM) as well as thrust force(Fz=3kN).Center through hole design with flange-to-flange structure makes mounting easy,the particular sensor can be modified or customized upon clients’ requirements to fit different applications.

2-axis load cell FFT offers an excellent solution for measuring torque in clockwise and counterclockwise as well as force in tension and compression direction.You may find biaxial force sensor suitable for applications such as grinding and polishing,robotic assembly,product testing,etc..

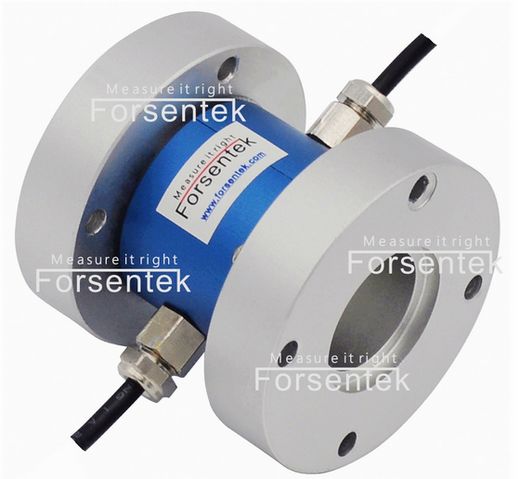

force torque sensor

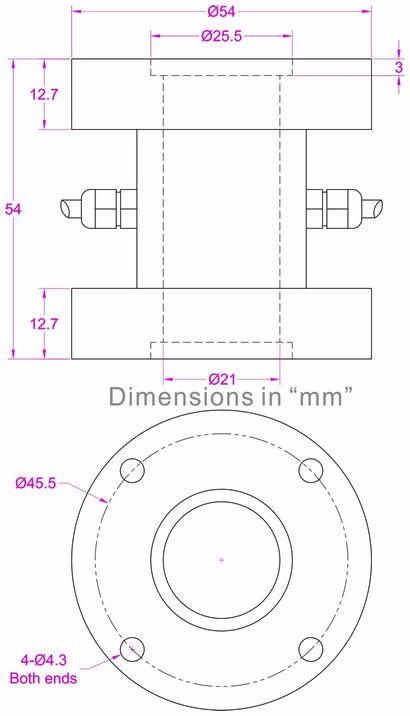

Dimensions:
Searching keywords:
Force torque sensor,2 axis force sensor,2 axis load cell,torque thrust sensor,biaxial sensor
