Product > Beam load cell

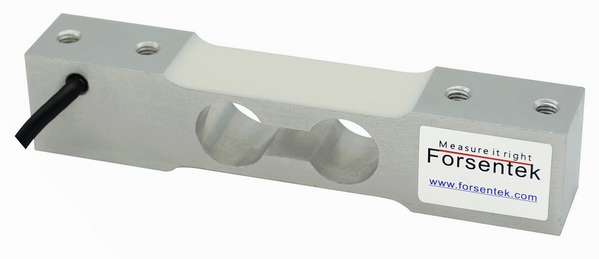

Off center load cell sensor 3kg 5kg 10kg 20kg

Model:                        FNK

Capacity:                    3/5/10/15/20kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Off-center load cell FNK offers 20kg / 15kg / 10kg / 5kg / 3kg five rated capacities to choose from, high accuracy with maximum 0.02% non-linearity of the full scale. Load sensor FNK utilizes strain gauges with 1000 ohms resistance to reduce power consumption, it is designed with 2xM5 threaded holes on each end for easy installation. Temperature compensation guarantees stable performance over a wide of temperature, corner trimming process makes loadcell FNK suitable for off center weight measurement, applicable platform size goes up to 200x200mm. Typical applications are for example packing&dosing industry, process control, bench scales, smart warehousing management system and so on.

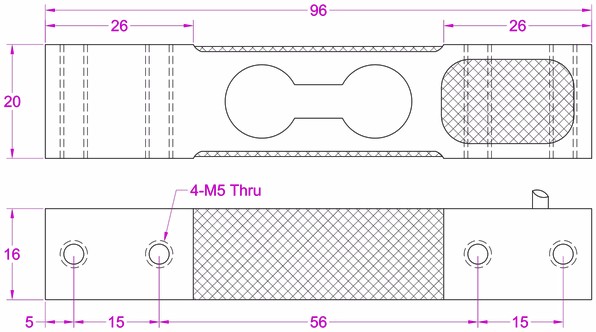

Dimensions:
