Product > Beam load cell

Off center load cell 500kg 350kg 200kg 100kg 60kg

Model:                        FNN

Capacity:                    60~500kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

High accuracy load cell FNN utilizes strain gauge technology intended for off center load measurement. Weight sensor FNN offers 0-60kg / 0-100kg / 0-200kg / 0-350kg / 0-500kg five measuring ranges with maximum 0.015% non-linearity of the full scale. Load cell sensor FNN is corner trimmed for platform sizes up to 400x500mm which makes it suitable for platform weighing applications. Weight transducer FNN is temperature compensated to deliver stable measuring results within the declared working temperature range.You may find beam type loadcell FNN applicable for bench scales, packing machines, beehive scales, feeding machines and so on.

off_center_load_cell_100kg_200kg_500kg

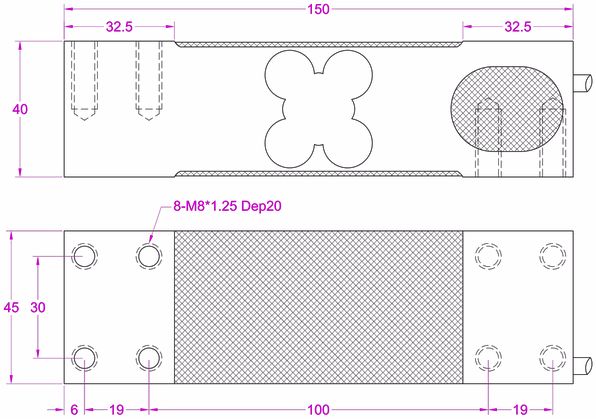

Dimensions:
Searching keywords:
Off center load cell 100kg,platform load cell 200kg,weight sensor 500kg
