Product > Beam load cell

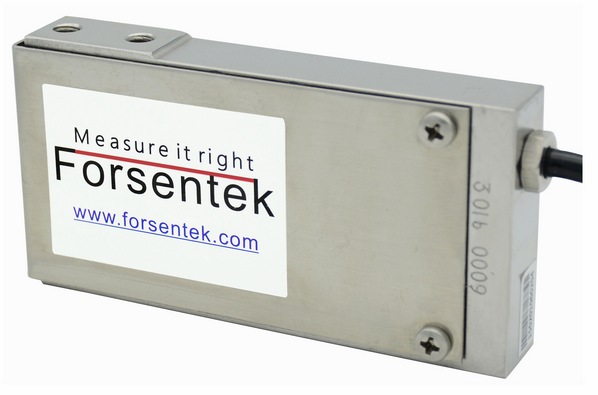

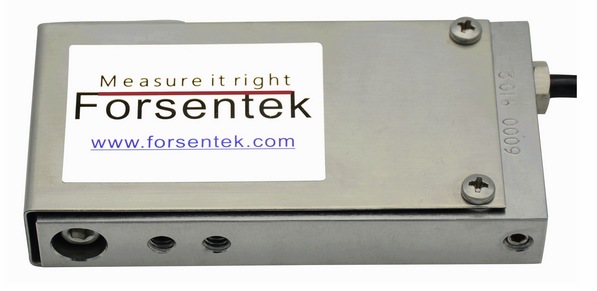

20lb 30lb 50lb 100lb Weighing load cell sensor

Model:                        FNX

Capacity:                    20/30/50/100 lb

Material:                     Stainless steel

Load direction:           Compression

Rated output:              2.0±0.3%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

strain gauge sensor

--Stainless steel contruction,protective cover plate,IP67 protection

--Strain gauge technology,high accuracy

--Overload protection structure

--Low off-center error,maximum platform size:200*200mm

--Widely used for platform scales,counting scales,weighing devices

strain gauge load cell

Dimensions:
Searching keywords:
Load cell transducer,loadcell sensor,load cell 50lbs,weight transducer 100lbs
