Product > Beam load cell

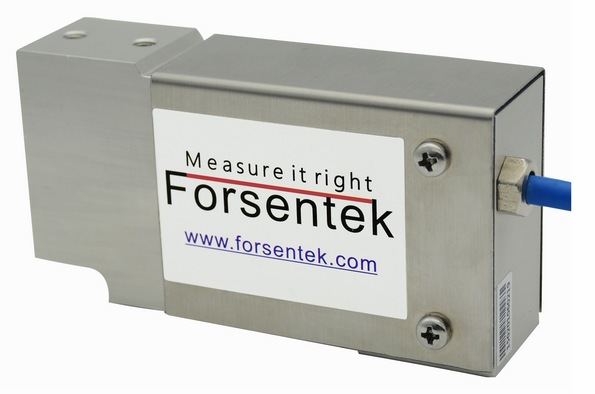

Weighing sensor|weighing load cell

Model:                        FNW

Capacity:                    10~100kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

loadstar sensors

--Aluminum contruction,steel cover protects the strain gauge area

--Strain gauge technology,6-wire connection,high accuracy

--Beam structure,easy to install

--Low off-center error,maximum platform size:250*250mm

--Widely used for platform scales,counting scales,packing machines

--Competitive price

strain gauge transducer

Dimensions:
Searching keywords:
Weighing sensor,weighing transducer,load cell sensor,load cell 100kg
