Product > Beam load cell

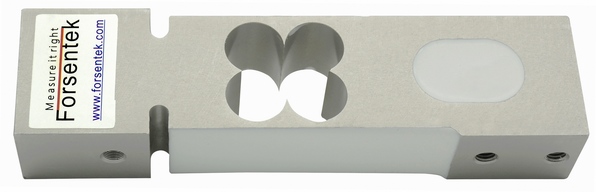

5kg 10kg 50kg 100kg 200kg Strain gauge transducer

Model:                        FNV

Capacity:                    5~200kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

strain gauge transducer

--Aluminum contruction

--Strain gauge technology,6-wire connection,high accuracy

--Beam structure,easy to install

--Low off-center error,maximum platform size:400*400mm

--Widely used for platform scales,counting scales,weighing devices

--Competitive price

hbm load cell

Dimensions:
Searching keywords:
Strain gauge transducer,strain gauge load cell,weight sensor,weight transducer,load sensor 50kg
