Miniature load cell 2kg 5kg Small weight sensor

Model:                        FMZC

Capacity:                    2/3/5kg

Material:                     Aluminum alloy

Load direction:           Tension/Compression

Rated output:              1.0 mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~10V

Other:                         Custom-design service

Features:

Miniature load cell FMZC is stain gauge based and delivers 1.0mV/V output from full wheatstone bridge.Small weight sensor FMZC offers 2kg/3kg/5kg measuring range with maximum 0.1% non-linearity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.

The compact size(L*W*H=22*8*5mm) and aluminum material makes FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass matters and mounting space is limited.

Miniature load sensor FMZC offers a perfect mixture of small size,high accuracy and low cost.In addition to the standard size and capacities,Forsentek is capable and willing to provide customized load cells to meet customers’ different requirements.

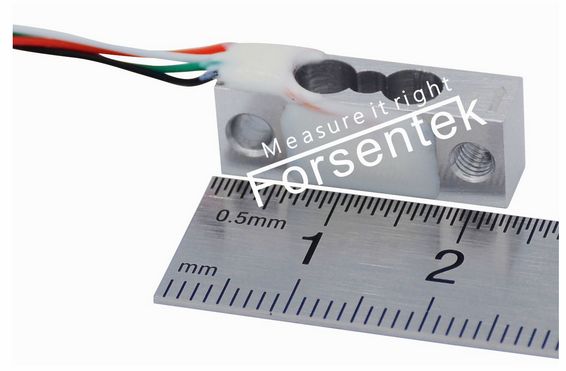

miniature load sensor

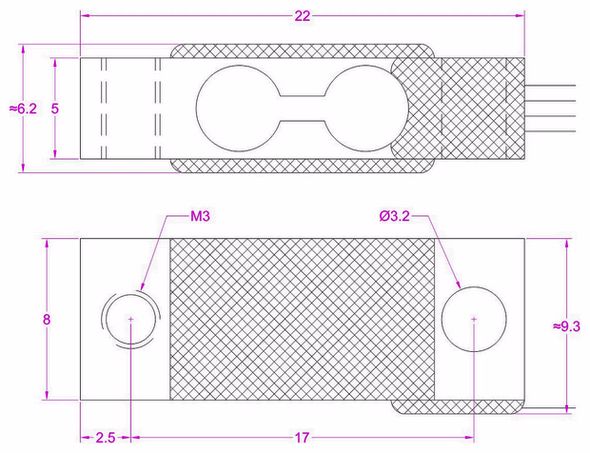

Dimensions:
Searching keywords:
cheap load cell,miniature load cell,small size load cell,small load cell,small weight sensor
